Downdraft tableTC 700 range

AUTONOMOUS SOLUTION

Specially designed to improve the working conditions of operators and avoid the risks linked to dust emissions, STIVENT INDUSTRIE® has developed a range of autonomous and multi-purpose downdraft tables.

The TC 700 downdraft tables are particularly suitable for small and medium-sized work requiring exhaust ventilation at workstation.

Versatile, these tables are used in particular for sanding, ginning, deburring, dust extraction, polishing, welding operations.

Efficient and adjustable, we guarantee air speeds greater than 0.5 m/s with the possibility of doubling this performance if necessary. Protection from dust is ensured.

Discreet, they benefit from a low noise level, it is less than 75 dB (measured at the work surface) which facilitates integration into the workshop.

Adaptable, many options will allow you to configure the ideal workstation by adding compressed air sockets for your tools, additional lighting, etc.

Mobile, they will not be an obstacle on your relocations.

Filtration fineness, with 99.9% of filtered particles larger than 0.3 microns (with HEPA option) the exhausts are optimised.

Reliable, maintenance is easy and low recurring, in particular thanks to the automatic cleaning system of the first filtration stage.

Easy installation of compressed air and electricity and the table is ready to produce.

For treatments in explosive environments, the equipment meets the ATEX standard.

All our tables are customisable and/or scalable according to your needs and technical constraints. Contact us on 05 49 50 41 91 or via our contact form. Together, we'll find a solution.



RANGE FEATURES

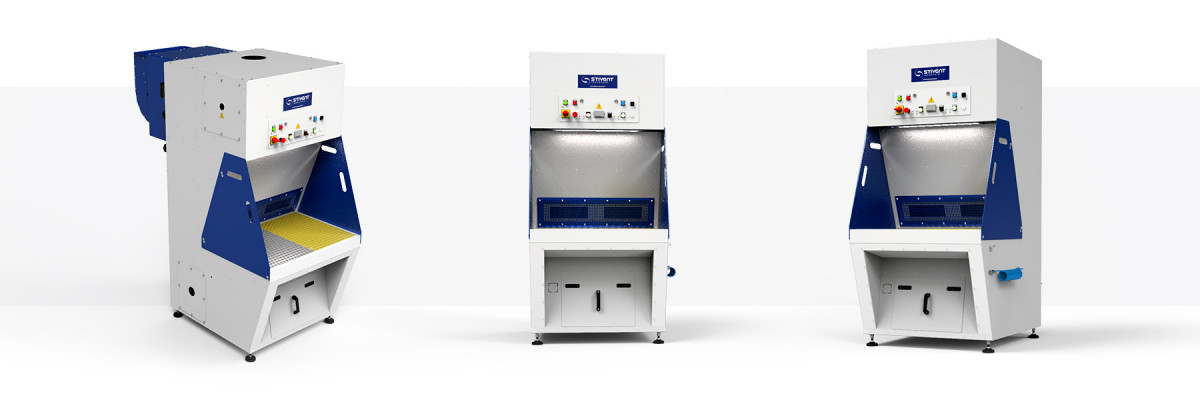

The TC 700 may be available in three standard formats, to be customised according to your needs:

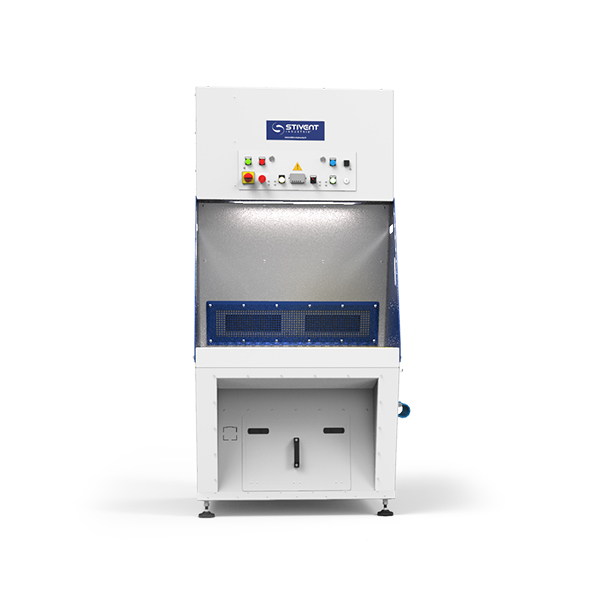

TC 700/1000

  • Overall dimensions in mm (D x W x H): 1305 x 1040 x 2210
  • Overall depth with absolute filter box: 1615
  • Main fan power kW: 0.75
  • Table flow rate at 1 m/s: 2800
  • Maximum flow rate: 4200



TC 700/1500

  • Overall dimensions in mm (D x W x H): 1305 x 1540 x 2210
  • Overall depth with absolute filter box: 1615
  • Main fan power kW: 1.1
  • Table flow rate at 0.7 m/s: 4100
  • Maximum flow rate: 5400



TC 700/2000

  • Overall dimensions in mm (D x W x H): 1305 x 2040 x 2210
  • Overall depth with absolute filter box: 1615
  • Main fan power kW: 1.5
  • Table flow rate at 0.7 m/s: 5500
  • Maximum flow rate: 6200



Discover it on video:
